FRASTE FS 500 (40 Ton pulling capacity) mounted on 3 axles semitrailer



FRASTE-FS500

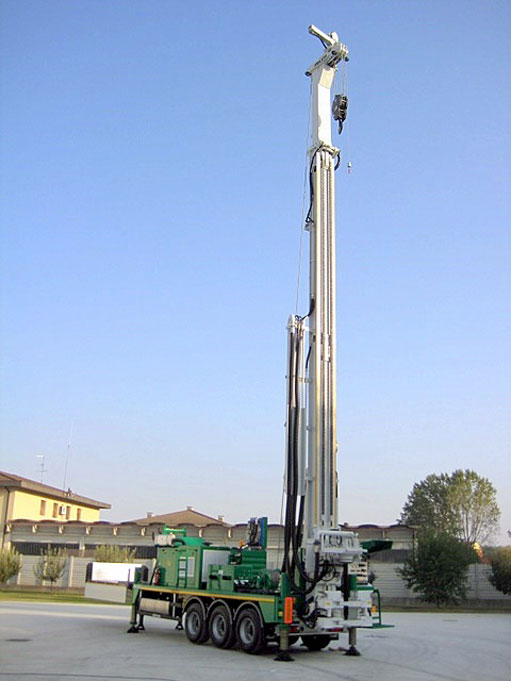

This time we want to talk to you of one drilling rig FRASTE FS 500 (40 Ton pulling capacity) mounted on 3 axles semitrailer, that  we have recently delivered to a customer of ours in France.
Its main characteristics are the following:

FRASTE FS 500 mounted on 3 axles semitrailer  - max. width mm 2540 - GTW 38000 kg.

  • - side boards 500 mm on goose neck.
  • - Four independent hydraulic stabilizers with mechanical locking.
  • - Pull up capacity 40000 kg.
  • - Pull down capacity 22000 kg.
  • - Drilling mast for drill pipes Range 2 (8,2÷9,2 m).
  • - Foldable mast extension for casings Range 3 (11.6÷13,7 m).
  • - Powered by deck mounted diesel engine IVECO Power: 353 HP
  • - R26D150 2-speeds rotary head.
  • - max torque: 2100 Nm
  • - max speed: 110 rpm
  • - Jim boom with hydraulic rotation +/- 90° mounted on the mast head with telescopic arm.
  • - Double clamp Ø 80 ÷ 520 mm with hydraulic side opening system for 1000 mm free passage.
  • - 40 Ton hoisting capacity travelling block.
