SERVICE RIG SR 16
Description

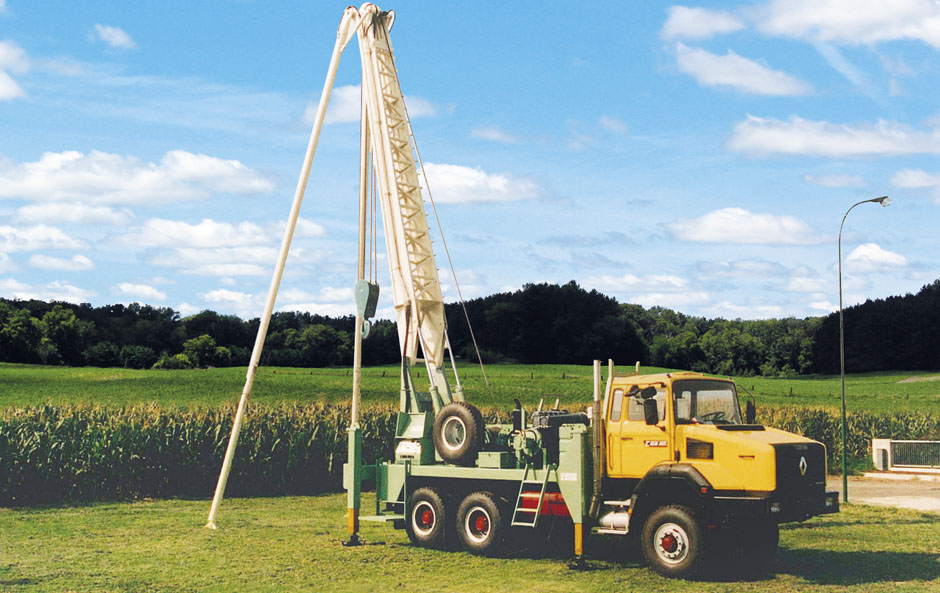

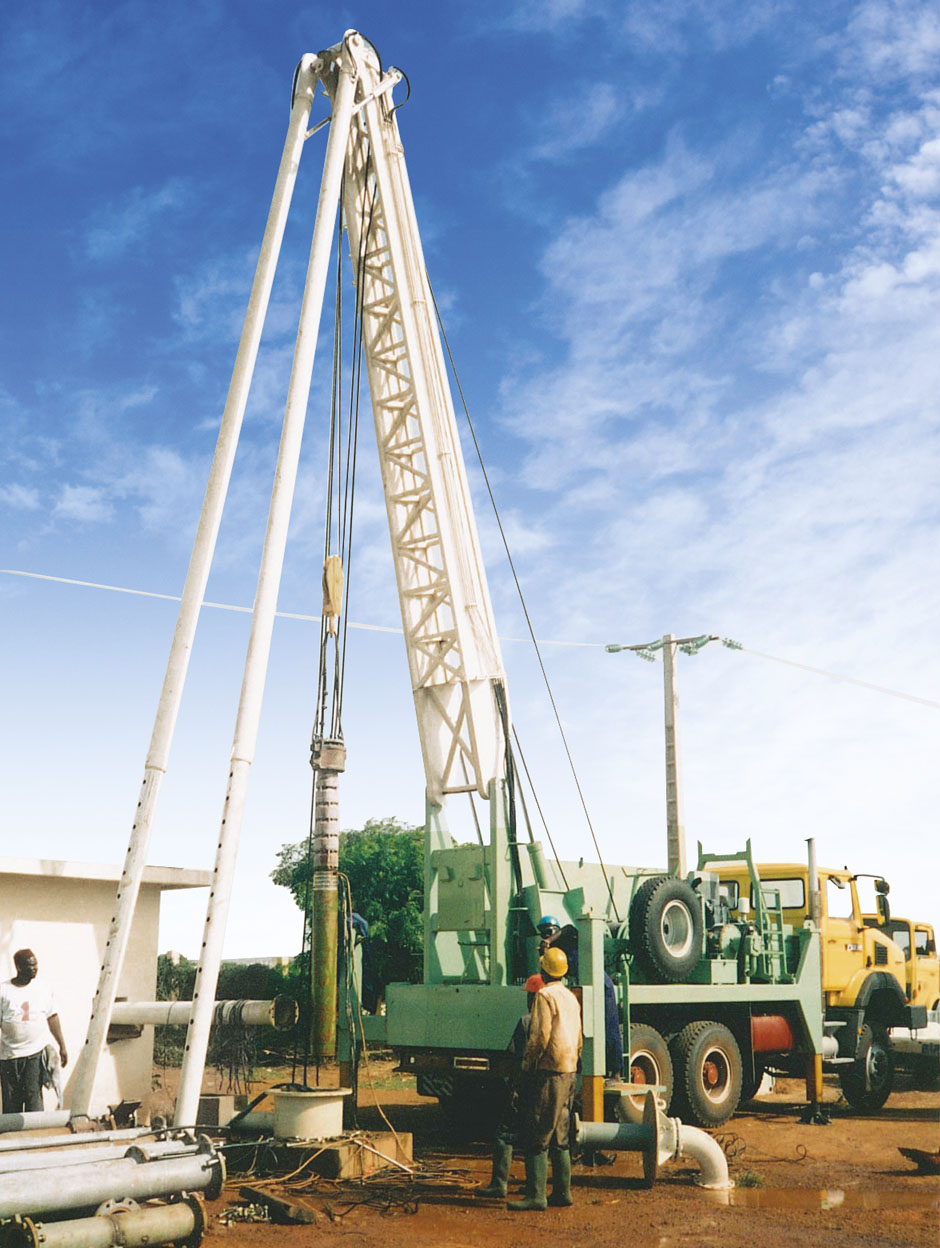

FRASTE SR16: Water Well Service / Maintenance rig, equipped with tripod positioning mast, hydraulic winch suitable for pipes lifting and submersible pump, in complete safety. Mounted on two or three axles truck carrier, the rig can be operated by the vehicle engine through the Power Take Off (PTO) device, or by an auxiliary engine, according to customer needs.
- Net hoisting capacity : 16 ton
- Free clearance between lifting hook and ground : 9 meters
The rig can be equipped with different additional components, as air compressor, high-pressure water pump, rotating lifting head, self-powered generator / welding machine, pipe tools, toolbox, etc…
Customized versions are well available, as customer specifications.
Optional
Other optional items are available on demand for a highly customized version of the rig.
MORE INFO ABOUT
SERVICE RIG SR 16 ?
FILL IN THE FORM!
Power | 126 - 522 Kw (170 - 700 Hp) | |
Gross capacity | 20 Ton | |
Free clearance from lifting hook and ground | 9000 daN (29,5 ft) | |
Overhanging from chassis frame and well axle | 1500 mm (4,9 ft) | |
Nest hoisting capacity | 16 Ton | |
Speed | 25 m/min | |
