MULTIDRILL ML T
Description

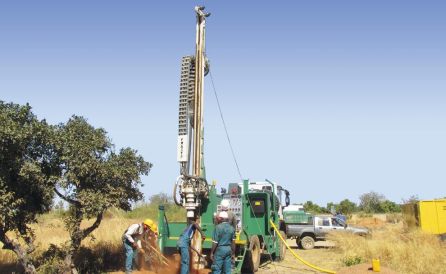

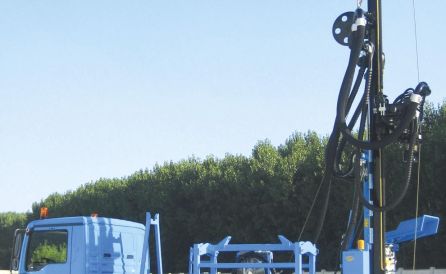

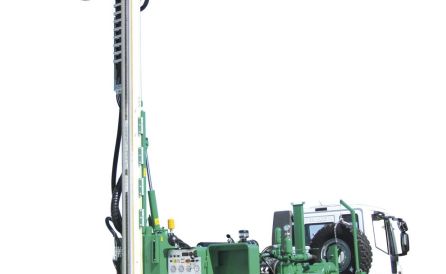

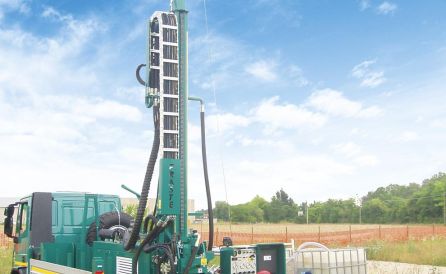

FRASTE MULTIDRILL ML T drilling rig, mounted on 2 axles light and compact truck carrier 4x4 – PTT 14 ton: efficient, fast, great reliability, top productivity rate. All top qualities of FRASTE MULTIDRILL ML, on “T”ruck fitting! FRASTE MULTIDRILL ML T keeps all features of the MULTRILL ML crawler mounted drilling rig: compact size and high performances to allow a large and multipurpose field of application among soil investigation, environmental monitoring and water well drilling. Innovative design, Stage 4 Final engines, first quality components and great care dedicated to the operator safety allow the MULTIDRILL ML T to easily work with all drilling systems : rotary drilling with direct / reverse fluid or air circulation ; DTH hammer ; roto-percussion system ; conventional and wire-lire coring. FRASTE MULTIDRILL ML T can be equipped with a wide range of drilling tools and accessories as the MULTIDRILL ML crawler mounted version, to meet all drilling needs.
Optional
- Main Winch
- Wire line winch
- Triplex pump
- Screw pump
- Foam pump
- Line lubricator
- Hydraulic air valve
- Hydraulic SPT device
- Remote radio control
Other optional items are available on demand for a highly customized version of the rig.
MORE INFO ABOUT
MULTIDRILL ML T ?
FILL IN THE FORM!
Power | CAT C3.6 - Stage V - Tier 4F - 90 kw (120 Hp) | |
Rotary head stroke | 3500-4500 mm (11,5-14,8 ft) | |
Pull-up | 6000 daN (13488 lbf) | |
Pull-down | 3100 daN (6969 lbf) | |
Max rotary head torque | 1180 daNm (8703 ft lbf) | |
Clamp | Ø 60-280 mm (2,4"-11") | |
Rated drilling capacity | 150 mt (492 ft) | |
