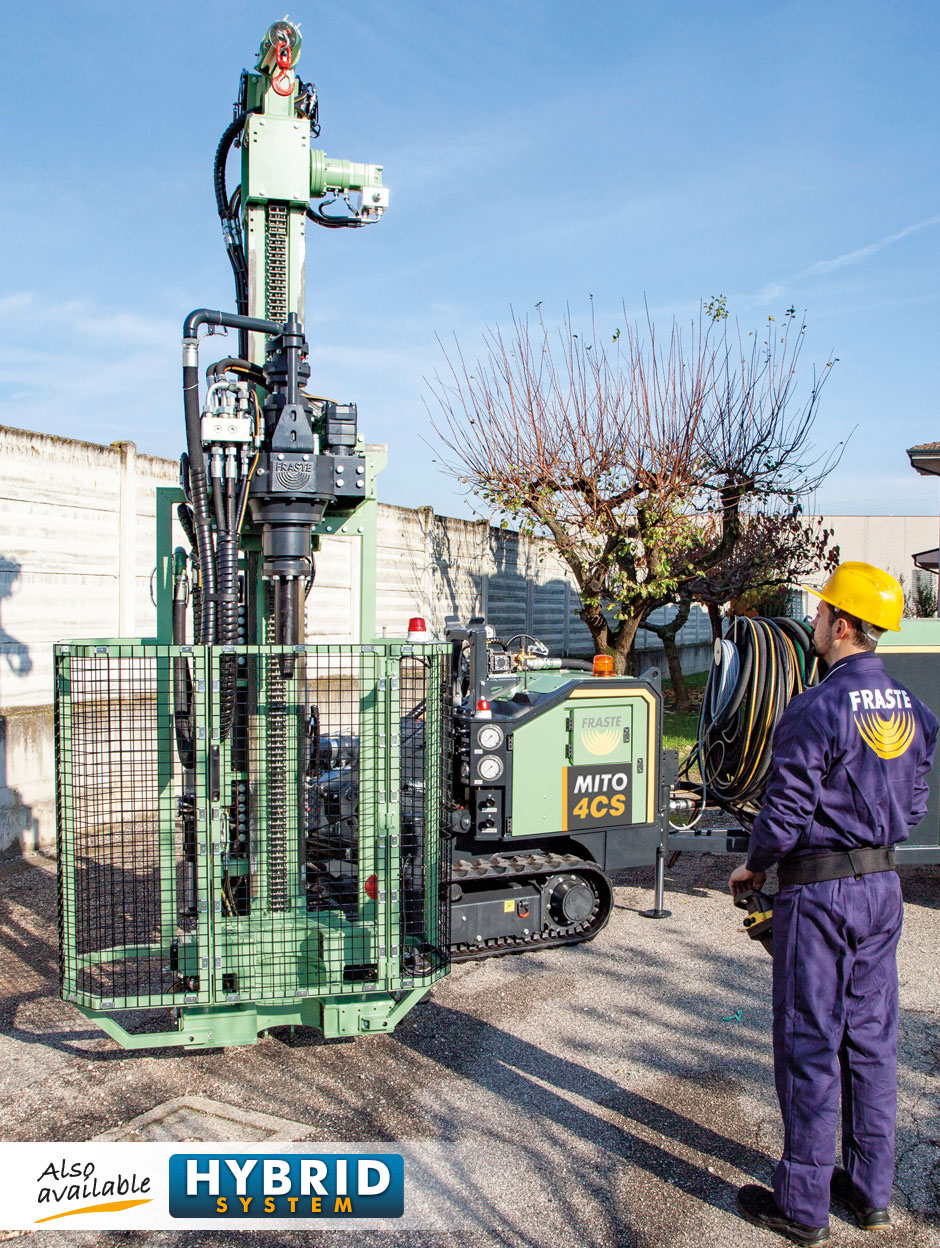

MITO 4 CS
Description

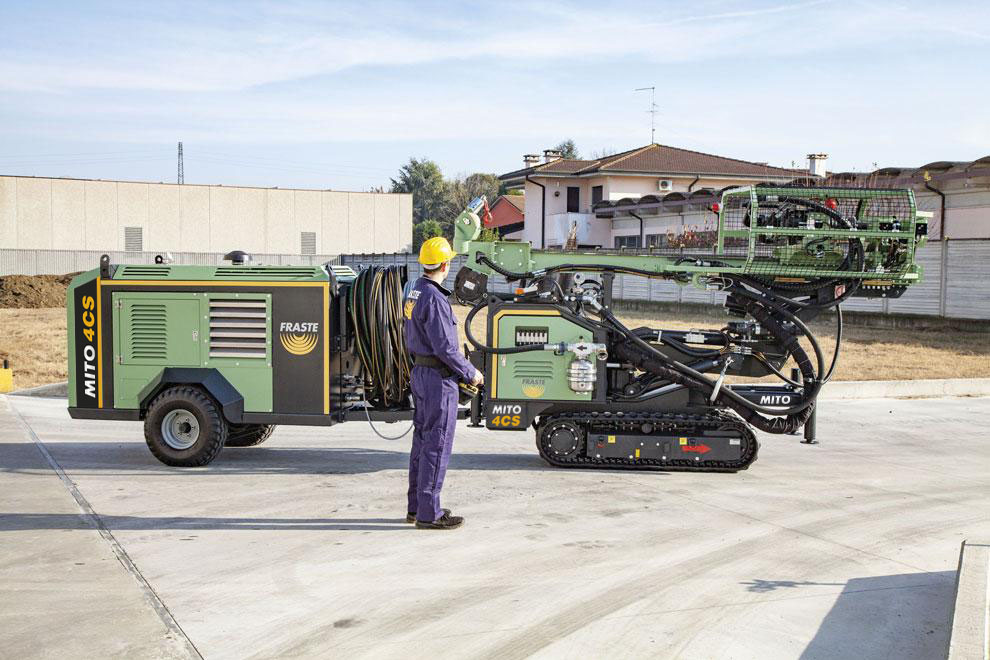

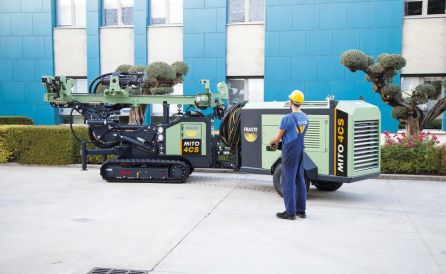

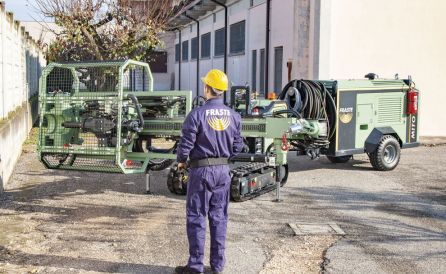

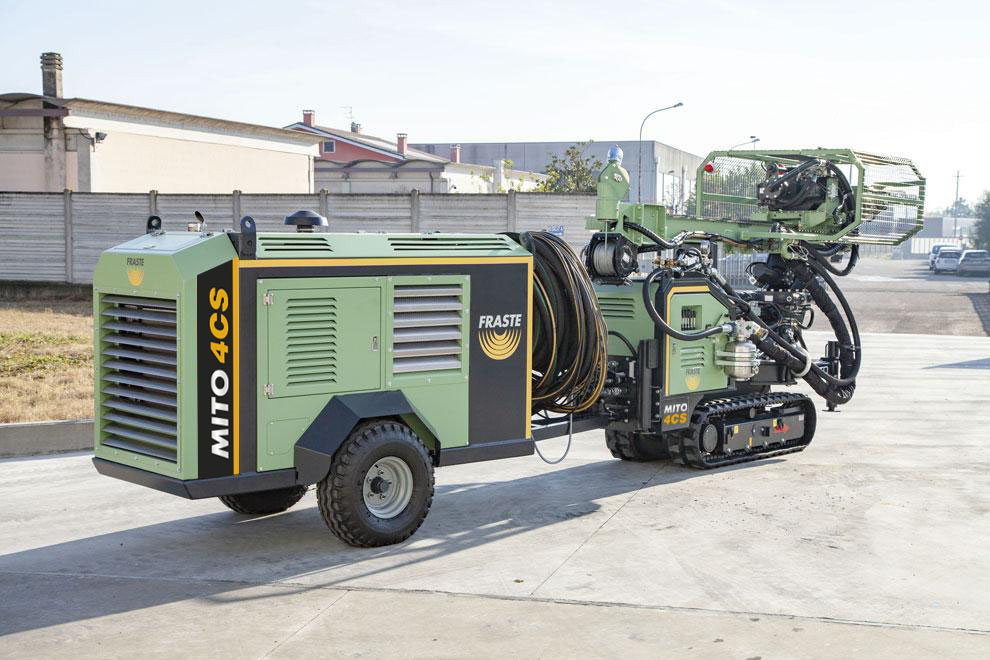

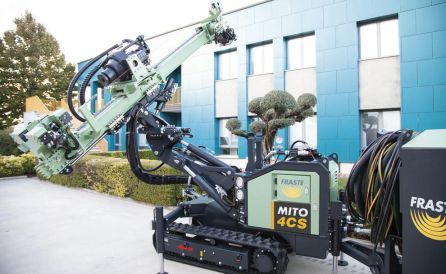

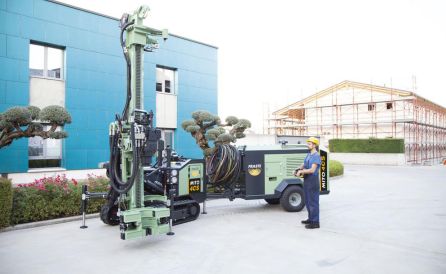

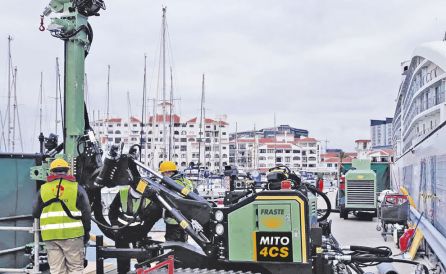

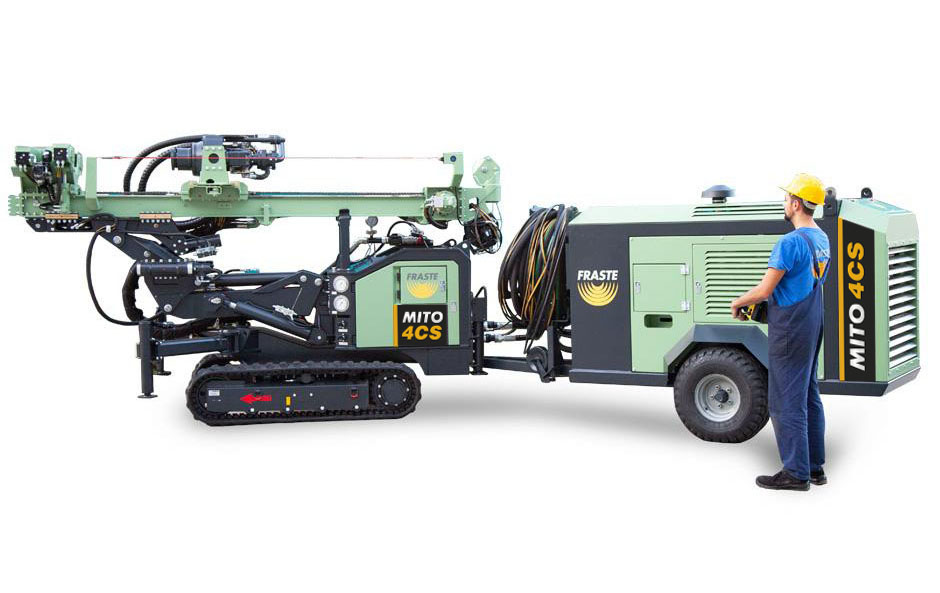

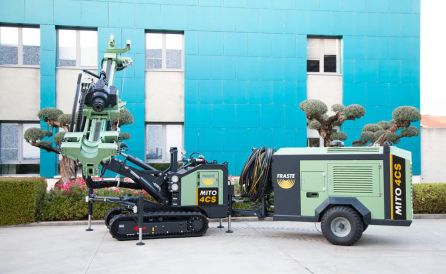

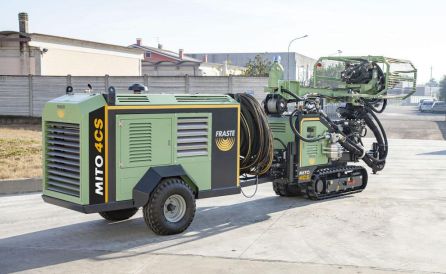

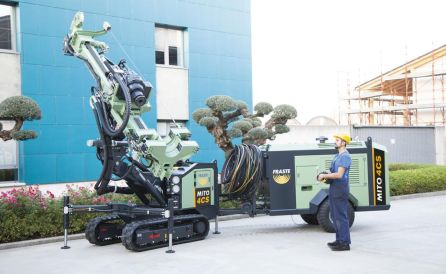

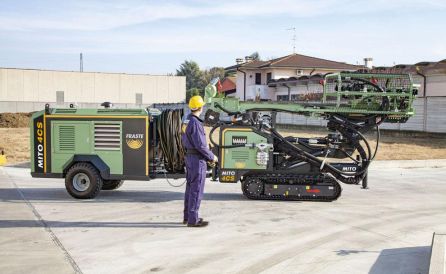

FRASTE MITO 4 CS with remote power pack, suitable for all foundation works, civil engineering jobs like micropiles, tie bars, ground consolidations, mineral exploration, diamond core rotary drilling and other purposes. The hydraulic remote power pack and the very small dimensions of the rig allow to work inside buildings and in very limited places.
Optional
- Hydraulic drifter
- Hydraulic chuck
Other optional items are available on demand for a highly customized version of the rig.
MORE INFO ABOUT
MITO 4 CS ?
FILL IN THE FORM!
Power | CAT 3.6 - Stage V - Tier 4F - 90 Kw (120,6 Hp) | |
Power | KUBOTA V3800 - Stage IIIA - Tier 3 - 74 Kw (100 Hp) | |
Rotary head stroke | 900 - 1400 - 2200 mm (2,95 - 4,6 - 7,2 ft) | |
Nominal Pull-up force | 5000 daN (11240 lbf) | |
Nominal Pull-down force | 5000 daN (11240 lbf) | |
Max rotary head torque | 1280 daNm (9440 lbf*ft) | |
Max rotary head speed | 1220 rpm | |
Clamp | Ø 40-250 mm (1,6"-9,8") | |
Weight | ~ 4300+2100 Kg (~ 9500+4600 lbf) | |
