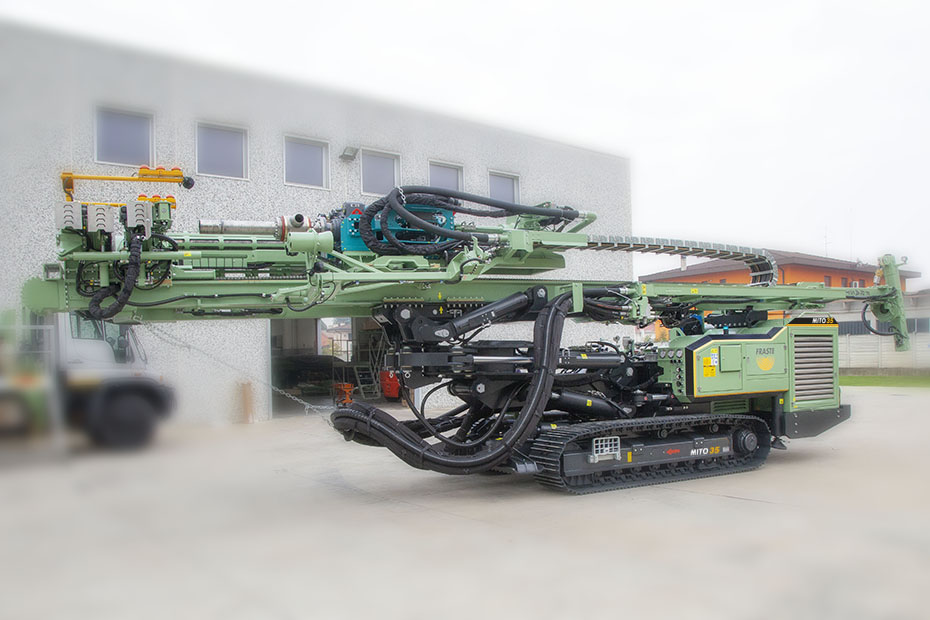

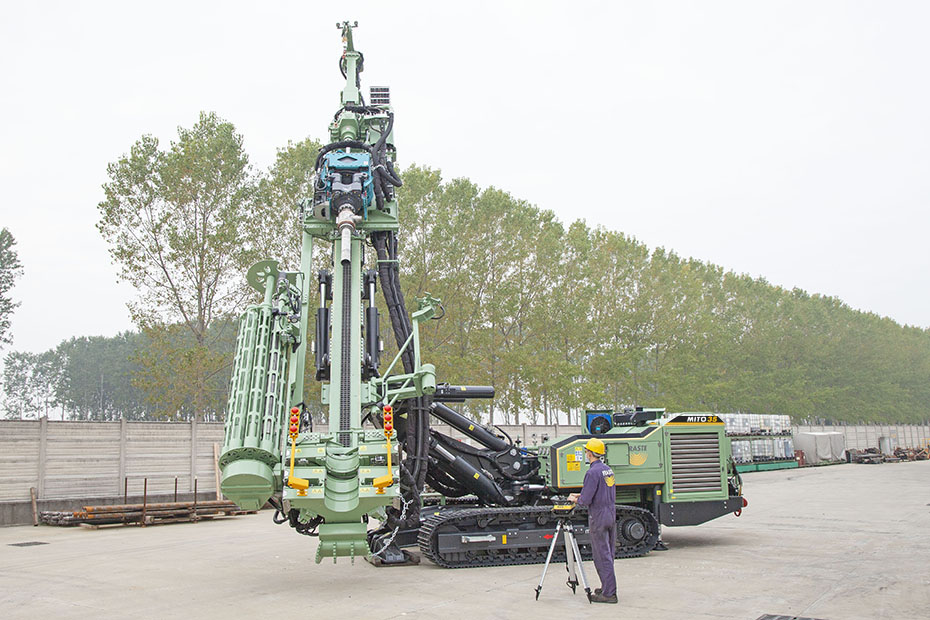

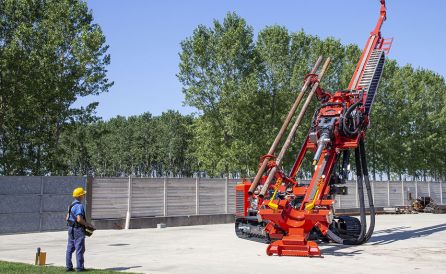

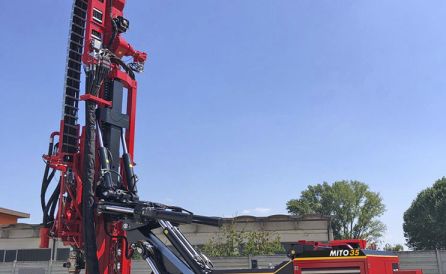

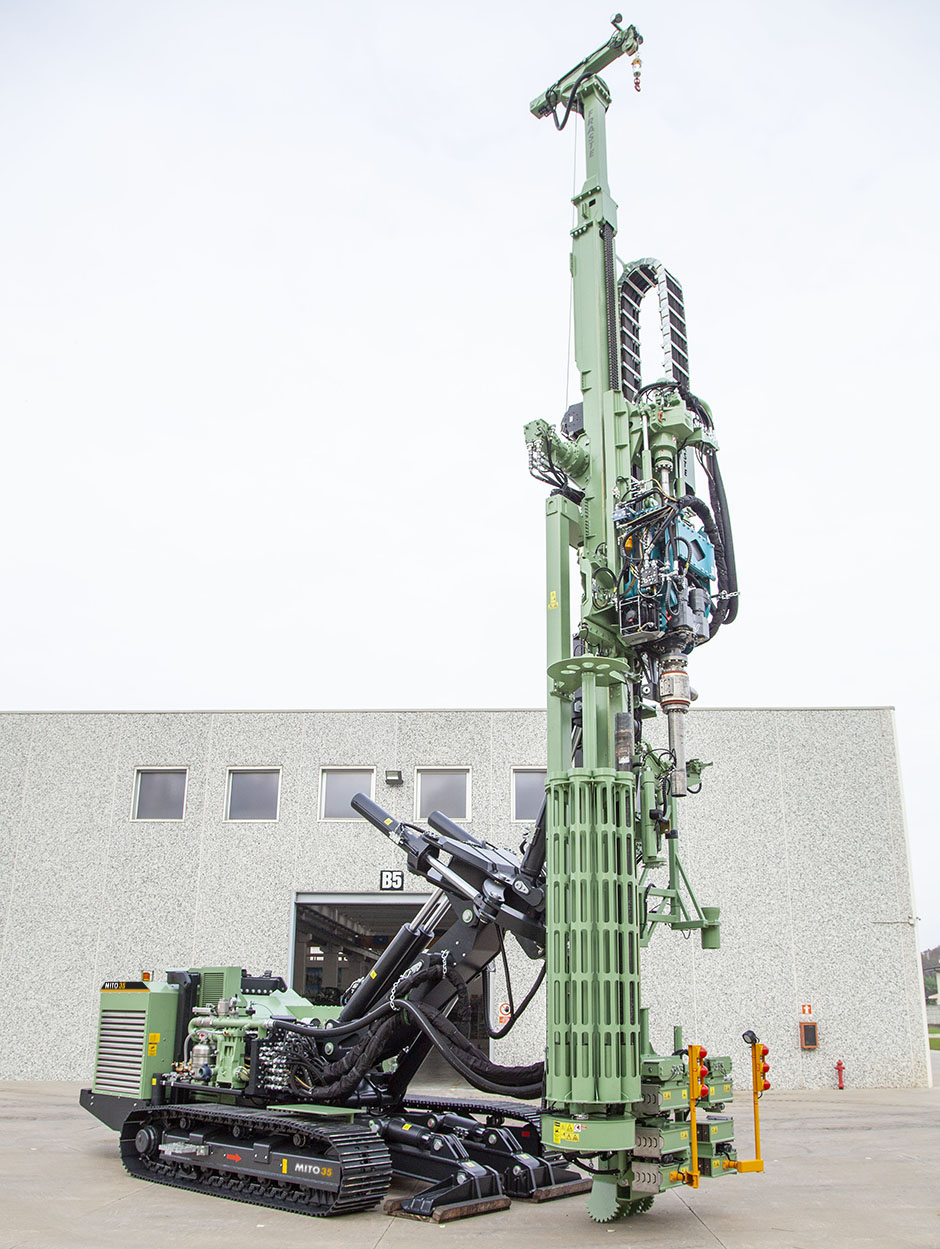

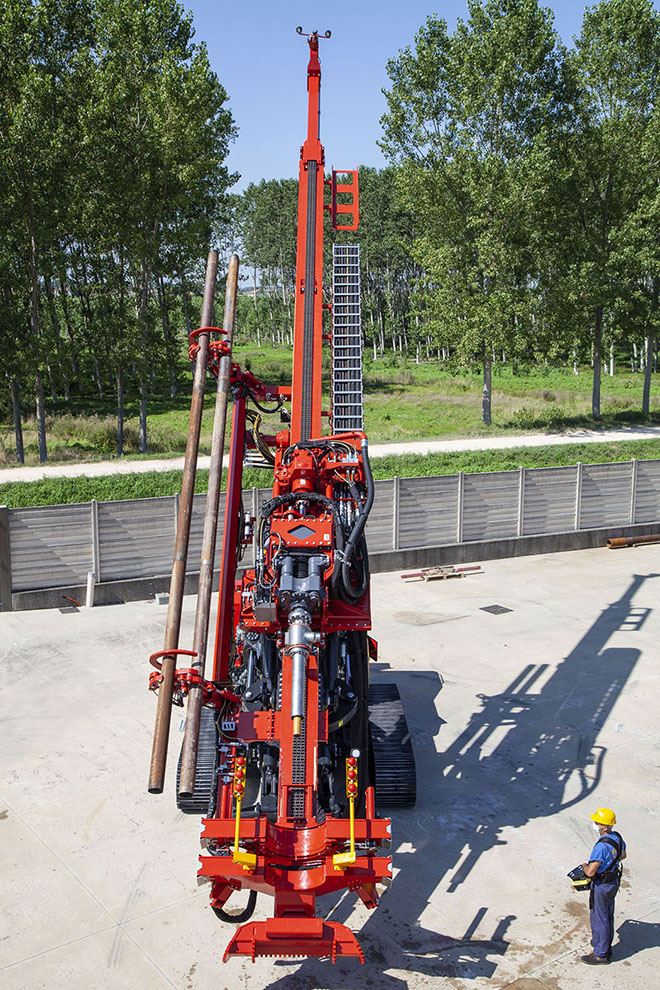

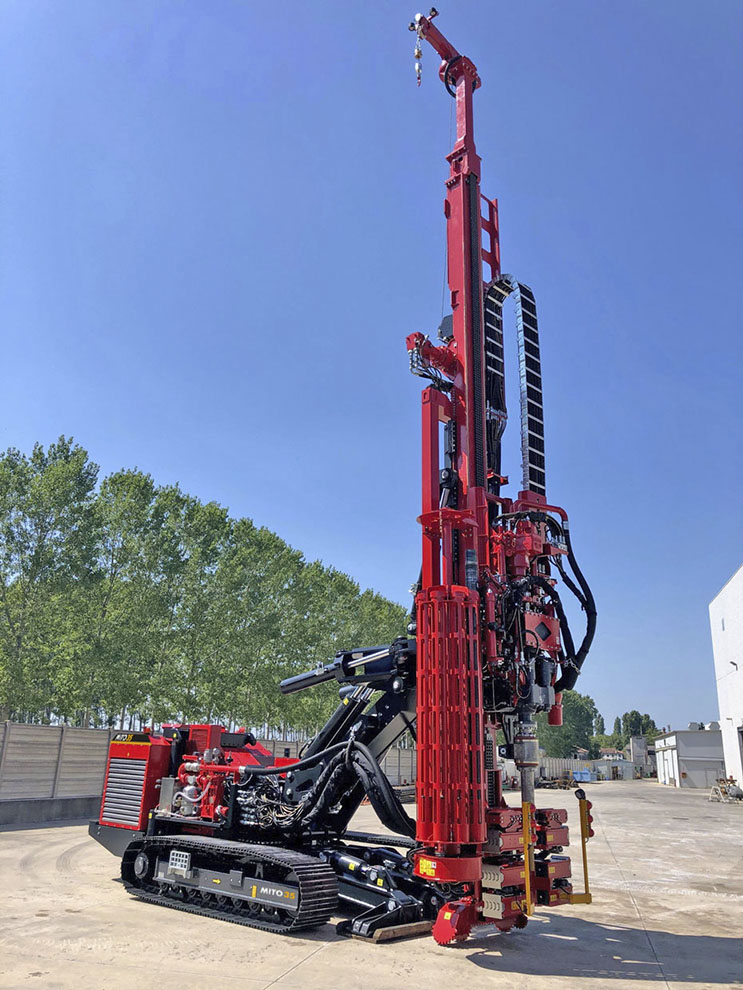

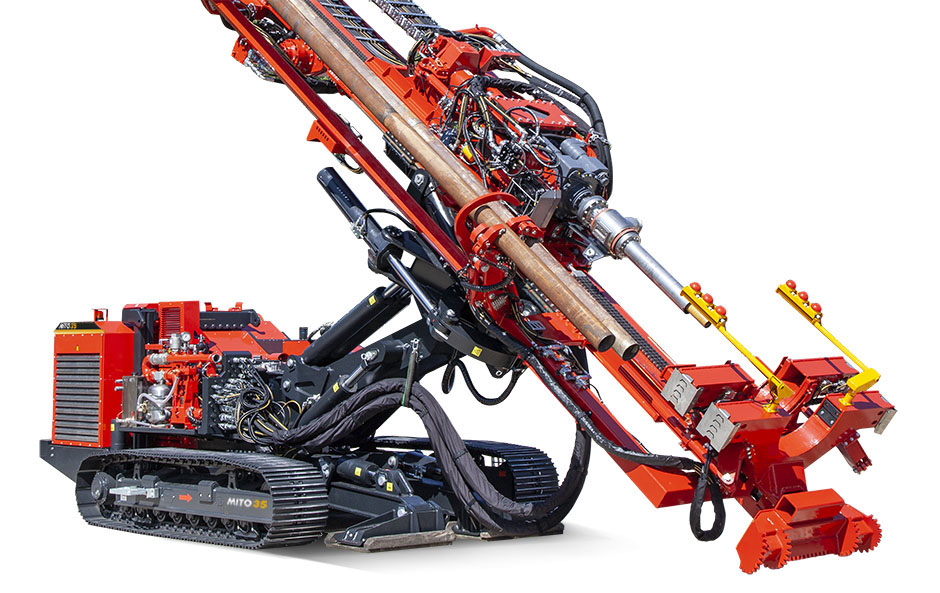

MITO 35
Description

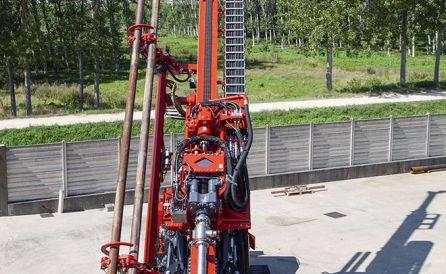

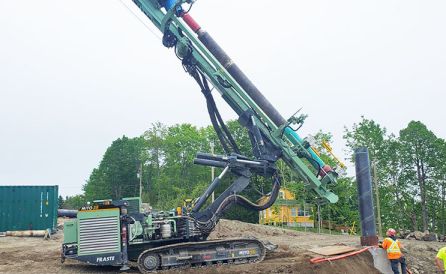

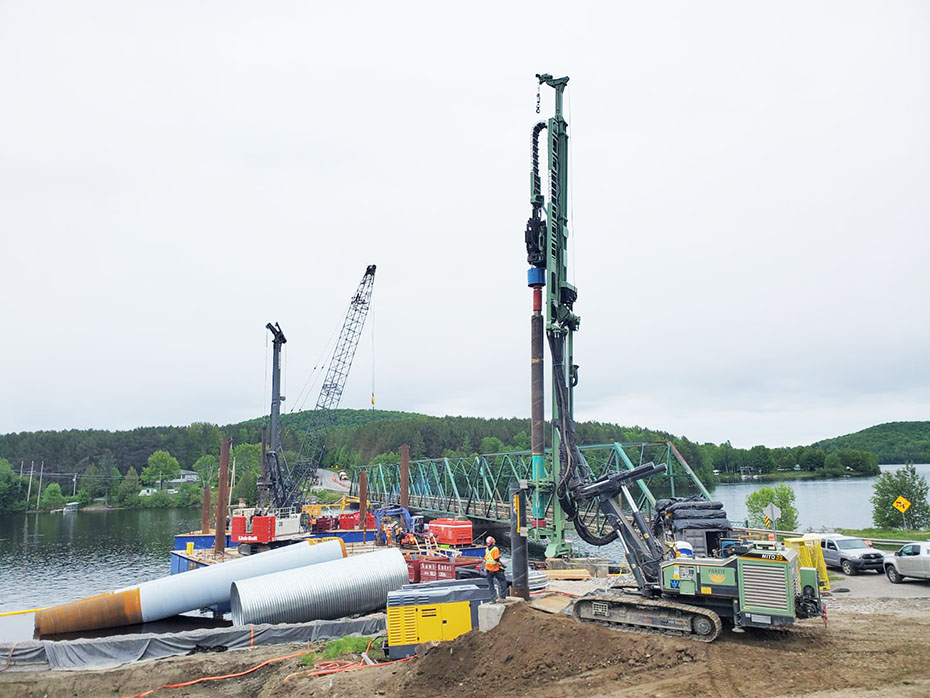

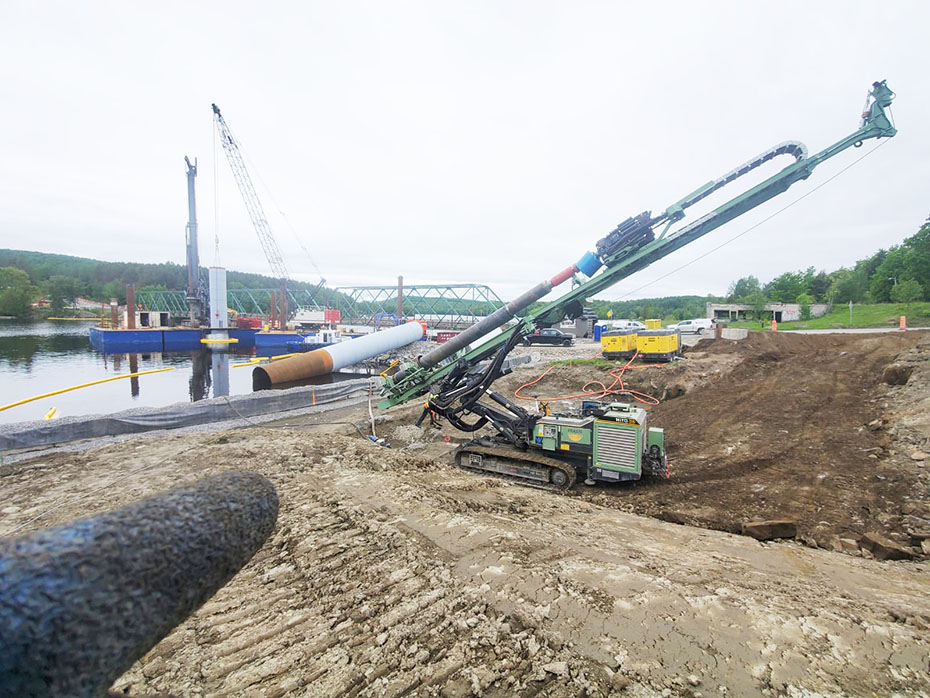

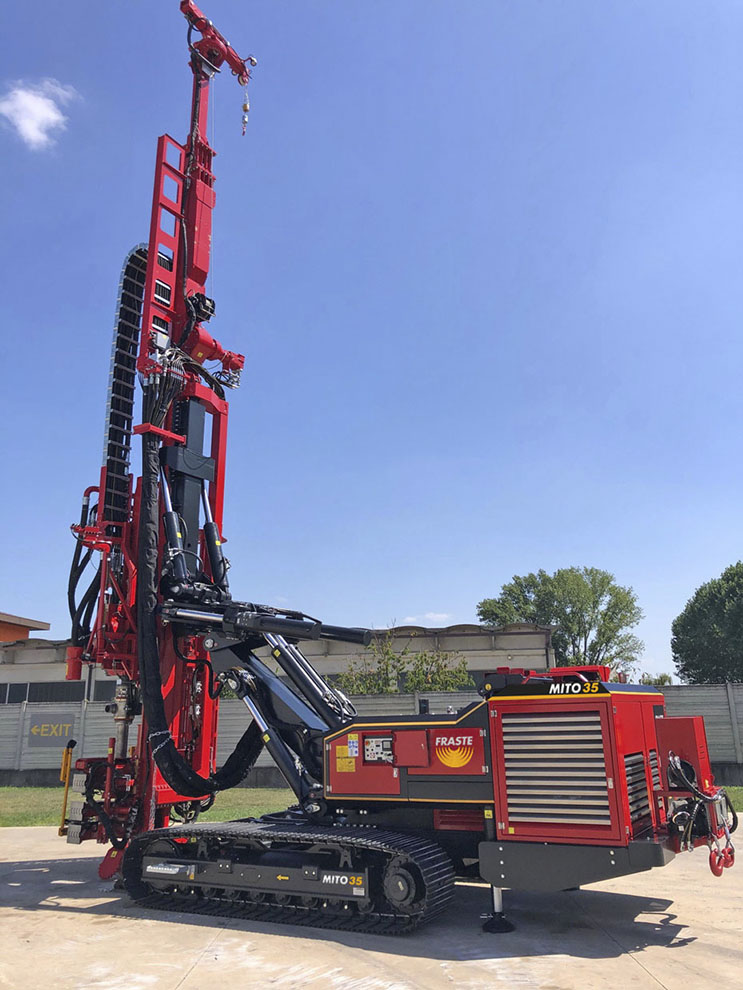

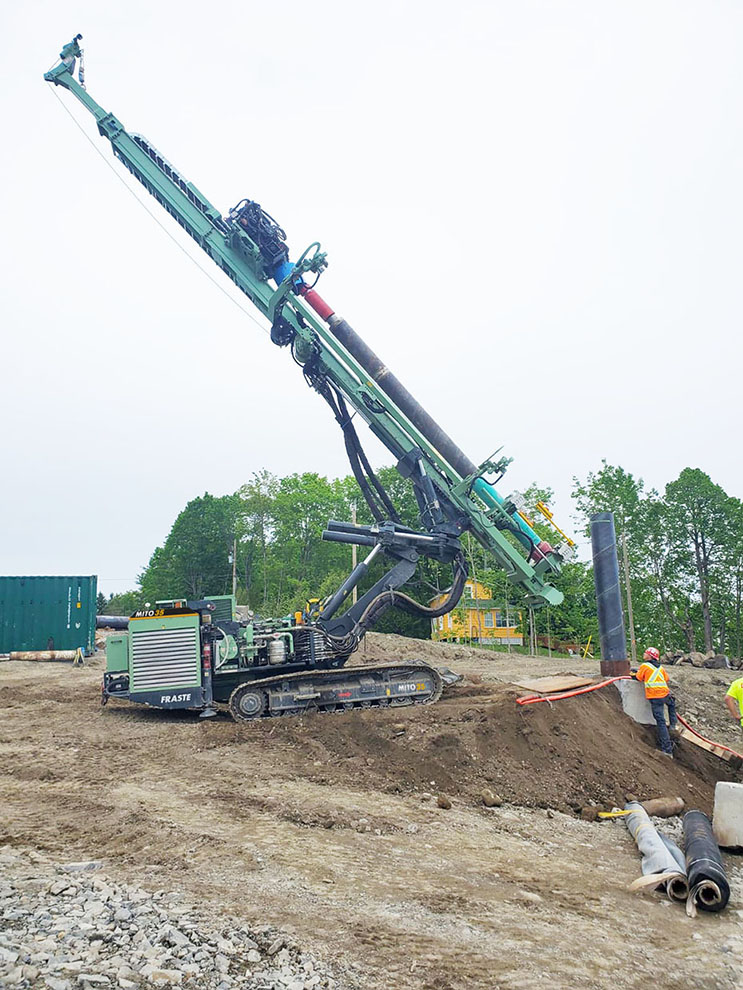

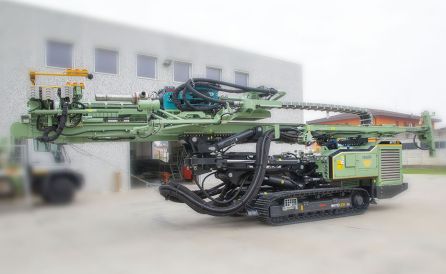

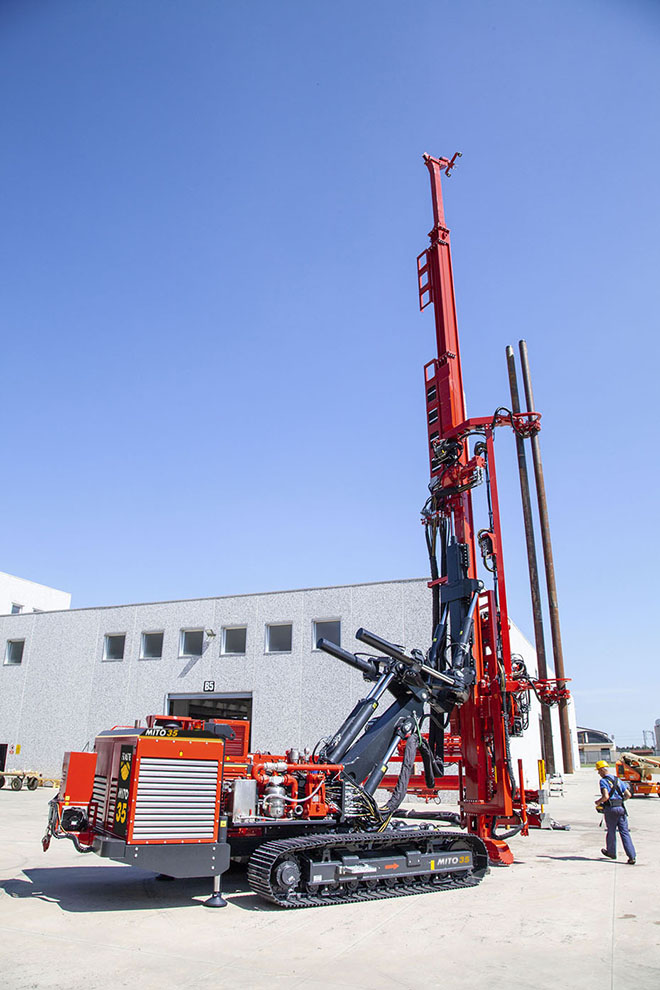

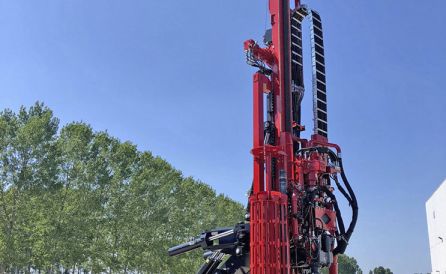

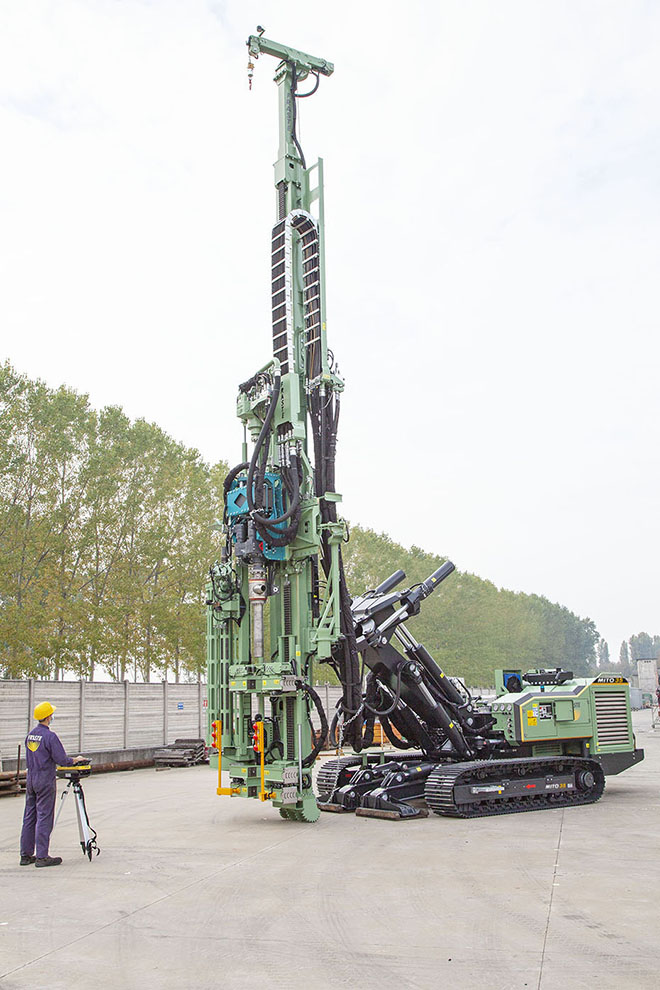

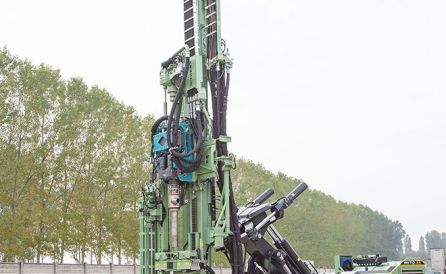

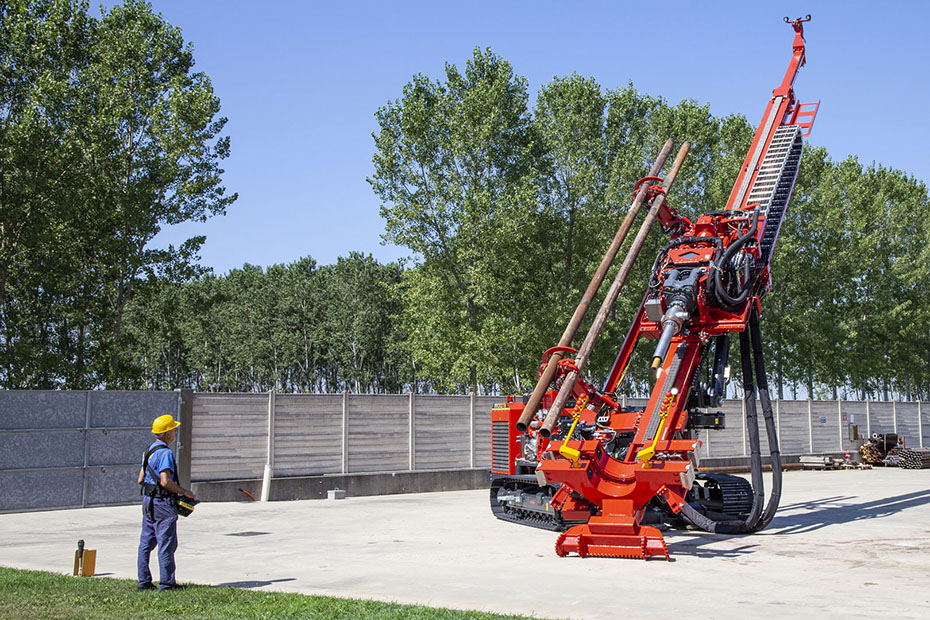

MITO 35, a powerful drilling machine for the execution of tie rods, anchors and micropiles; highly productive and high construction quality. Thanks to its strenght and the accurate sizing of all the elements, it allows the reduction of fluctuations to a minimum during the drilling phases. Thanks to its reliability, power and weight, the MITO 35 ranks among the most demanded machines on the basis of its uniqueness in its category. The TB version is equipped with a drill pipes & casings carousel which allows loading both simultaneously, in a completely automated, rapid and definitely safe way.

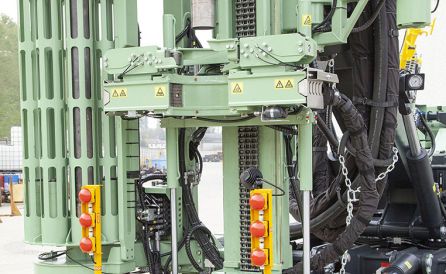

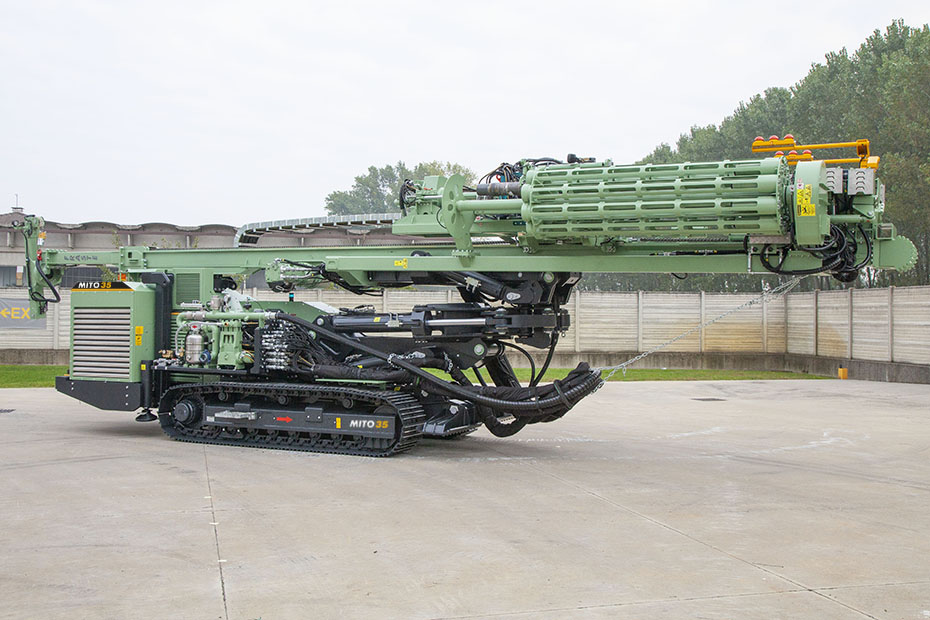

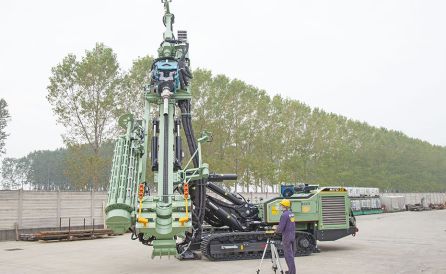

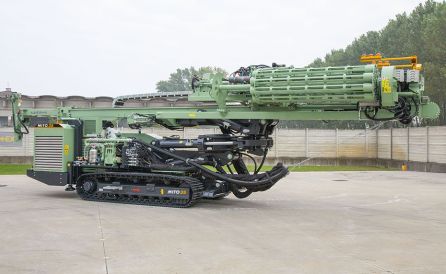

The tb loader, unique in terms of construction and performances, contains up to 9 drill pipes and 9 casings of different diameters.
Optional
- Hydraulic drifter
- Winch
- Jet grouting Kit
Other optional items are available on demand for a highly customized version of the rig.
MORE INFO ABOUT
MITO 35 ?
FILL IN THE FORM!

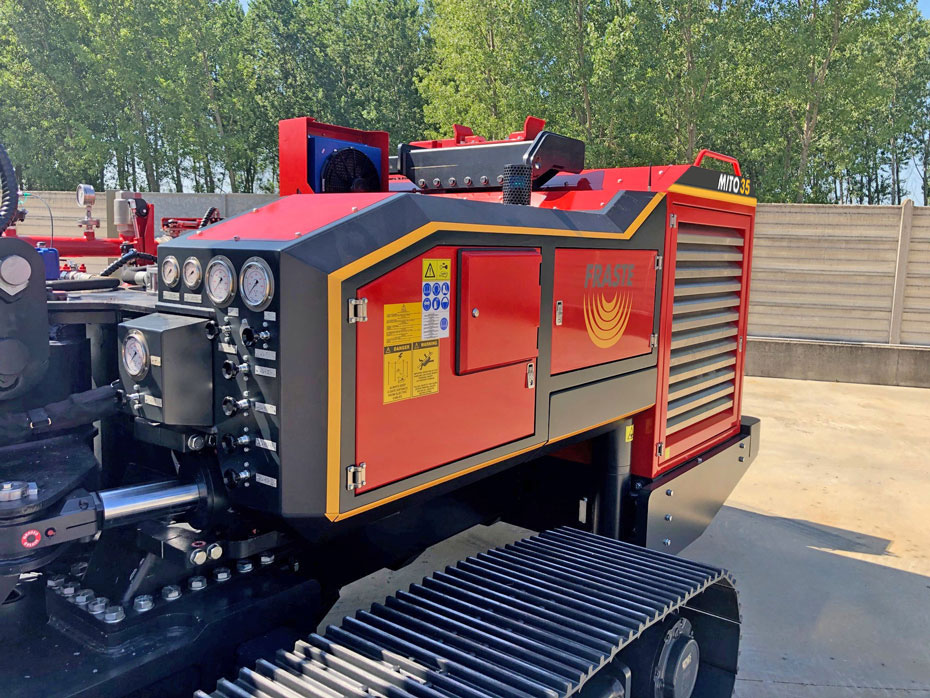

Power | CAT 7.1 - Stage V - Tier 4F - 205 Kw (275 Hp) | |
Power | CAT 7.1 - Stage IIIA - Tier 3 - 205 Kw (275 Hp) | |
Rotary head stroke | 8500 - 12000 mm (27,9 - 39,4 ft) | |
Nominal Pull-up force | 19600 daN (44060 lbf) | |
Nominal Pull-down force | 19600 daN (44060 lbf) | |
Max rotary head torque | 4300 daNm (31715 lbf*ft) | |
Max rotary head speed | 190 rpm | |

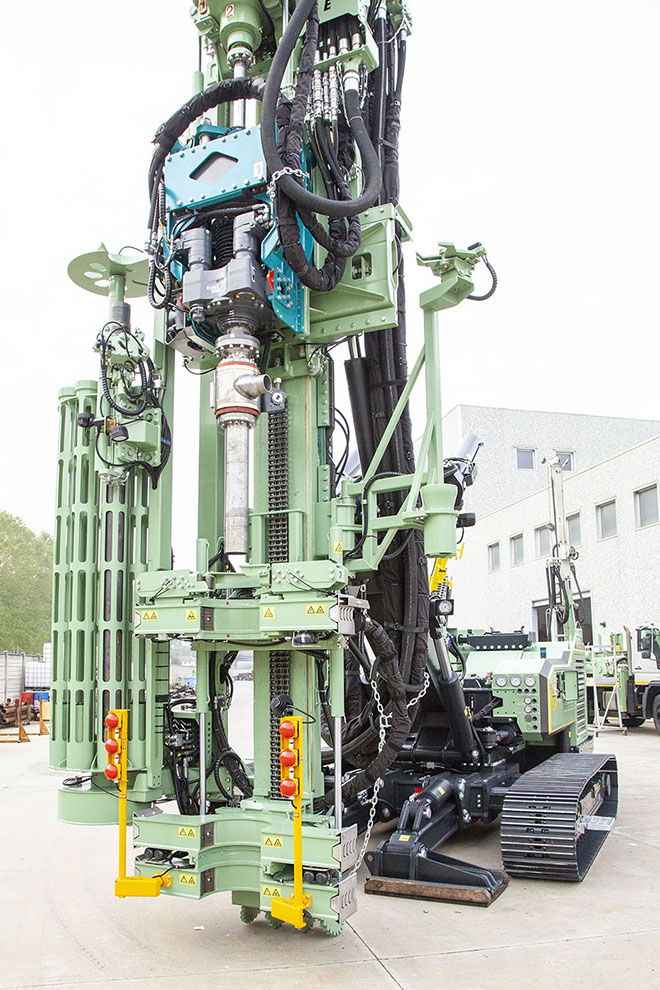

DOUBLE HEAD | ||
R12D100 2-speed upper rotary head | 1400 daNm (10300 lbf*ft) / 60 rpm | |
R26D100 2-speed lower rotary head | 3400 daNm (25100 lbf*ft) / 30 rpm | |

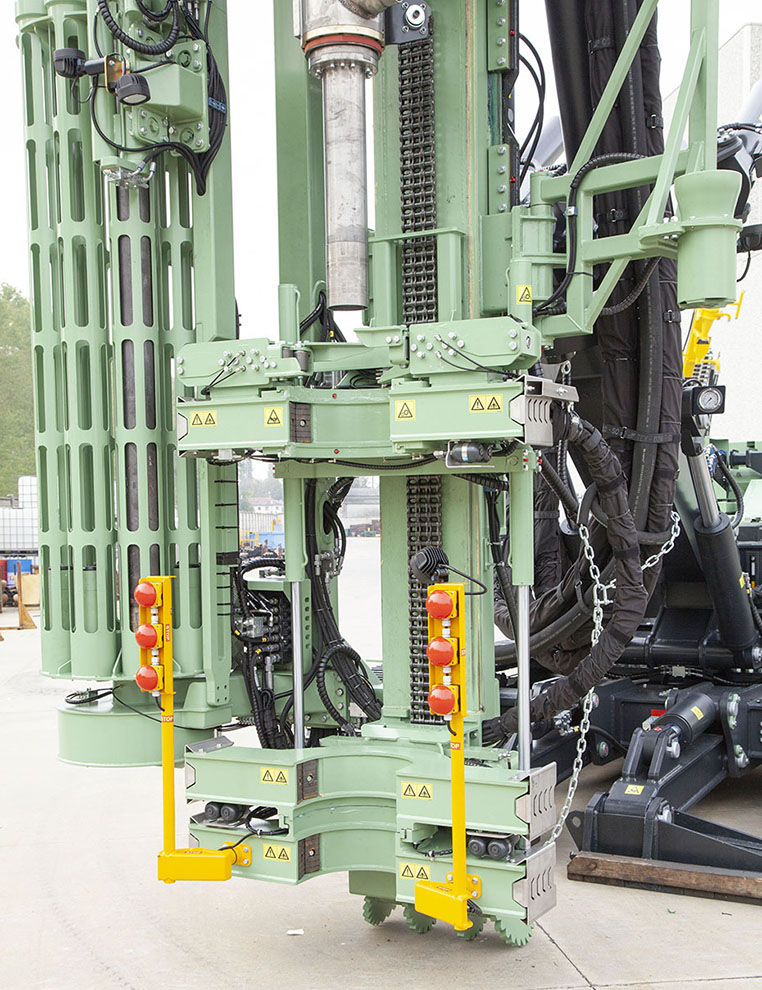

Clamp | Ø 90-645 mm (3,5"-25,4") / Ø 60-415 mm (2,4"-16,3") | |
Weight | ~ 36000 - 39000 Kg (~ 79366 - 85980 lbf) | |
