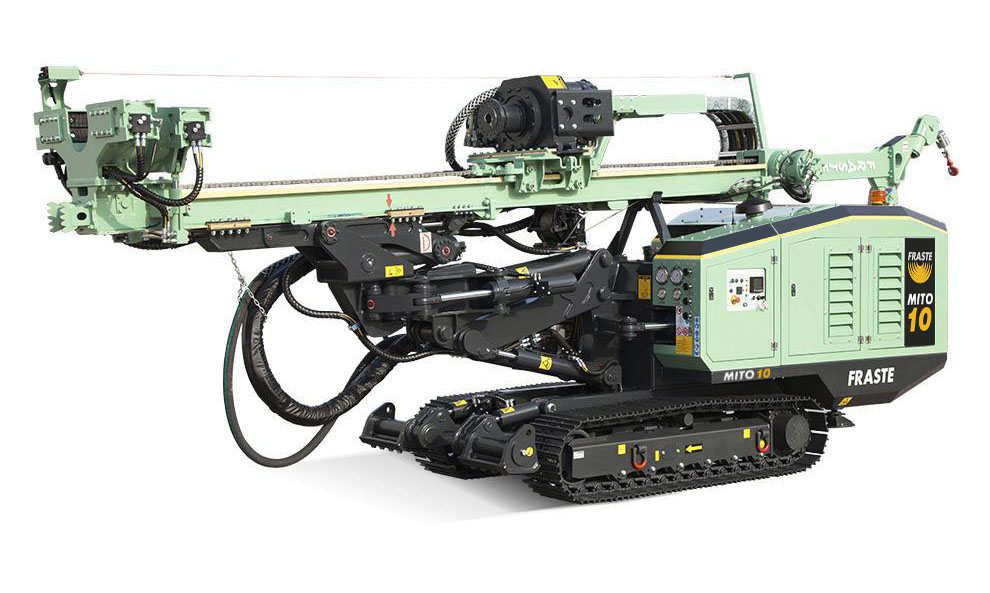

MITO 10
Description

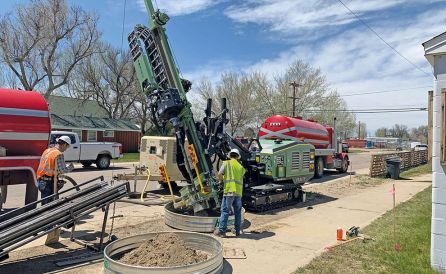

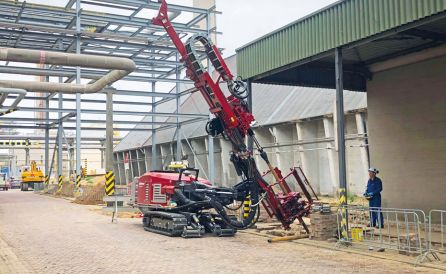

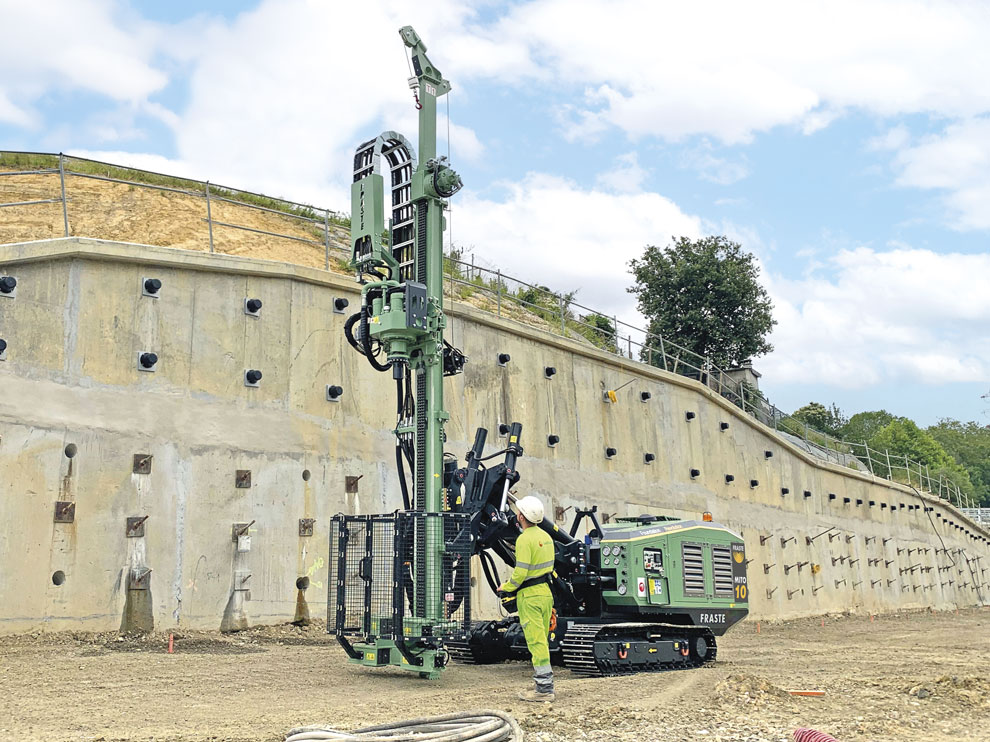

Hydraulic foundation drilling rig, agile and sturdy, suitable for heavy works, with an excellent manoeuvrability thanks to the FRASTE articulation system. Hi-tech components and innovative construction techniques make MITO 10 highly reliable and efficient. The powerful engine and the high-performances hydraulic system, allow to obtain exceptional results for its weight class in the execution of micro piles, tie bars, reinforced columns by jet grouting technique. MITO 10 can be equipped with a wide range of accessories, making it able to operate in any type of rotation drilling or roto-percussion drilling.
Optional
- Hydraulic drifter
- Winch
- Wire line winch

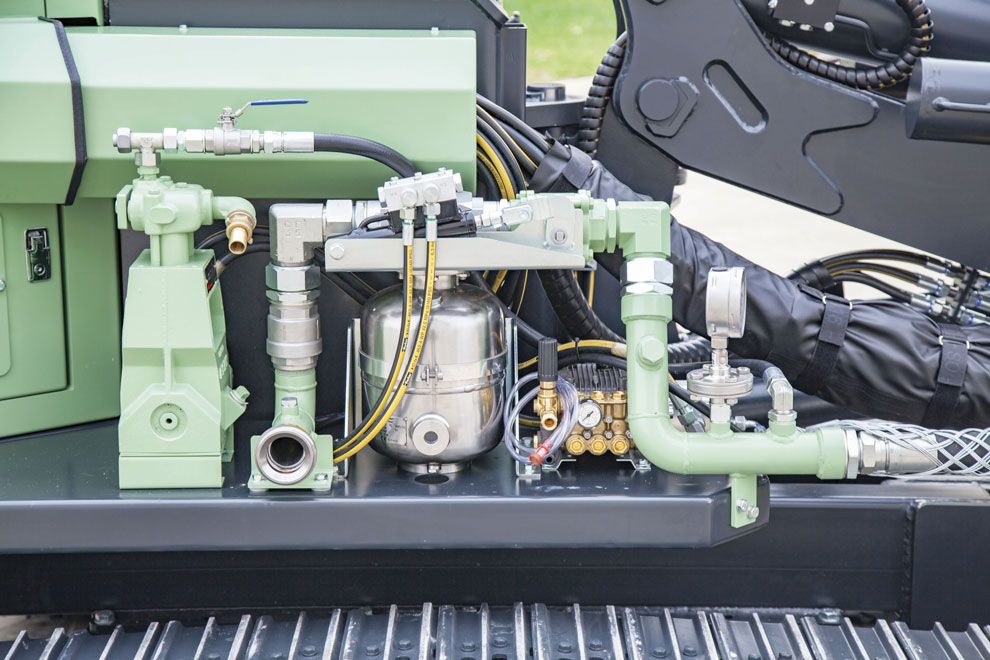

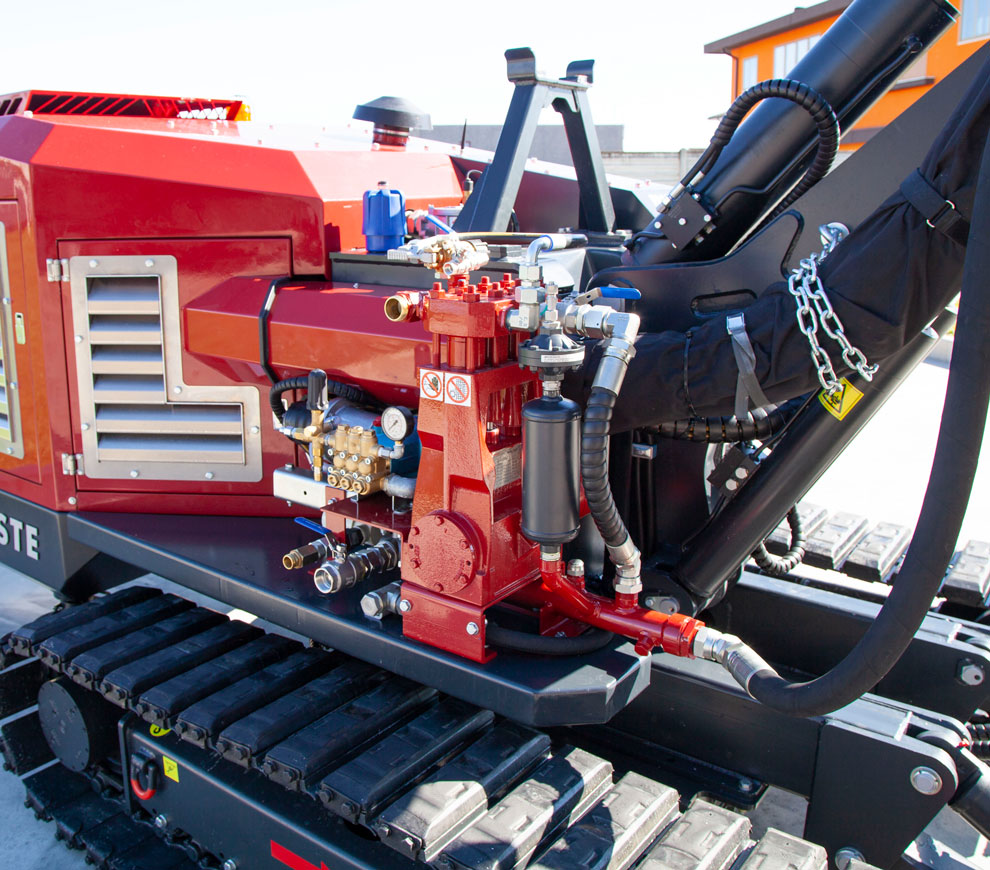

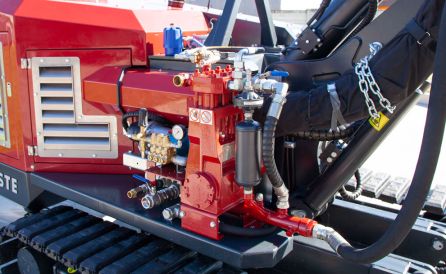

- Triplex pump
Other optional items are available on demand for a highly customized version of the rig.
MORE INFO ABOUT
MITO 10 ?
FILL IN THE FORM!
Power | CAT 4.4 - Stage V - Tier 4F - 110 Kw (148 Hp) | |
Power | CAT 4.4 - Stage IIIA - Tier 3 - 106 Kw (142 Hp) | |
Rotary head stroke | 1300 - 1900 - 2400 - 3800 mm (4,3 - 6,2 - 7,9 - 12,5 ft) | |
Nominal Pull-up force | 7600 daN (17080 lbf) | |
Nominal Pull-down force | 7600 daN (17080 lbf) | |
Max rotary head torque | 1460 - 1900 - 2400 - 2800 daNm (10768 - 14013 - 17701 - 20651 lbf*ft) | |
Max rotary head speed | 190 - 145 - 115 - 100 rpm | |
Clamp | Ø 48-260 mm (1,9"-10,2") / Ø 60-360 mm (2,4"-14,2") | |
Weight | ~ 9900 Kg (~ 21800 lbf) | |
