FS 500 T
Description

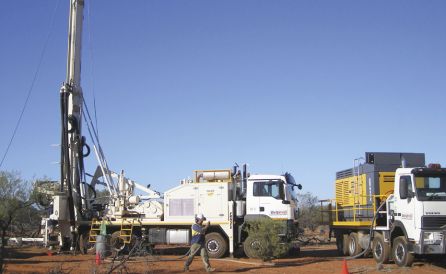

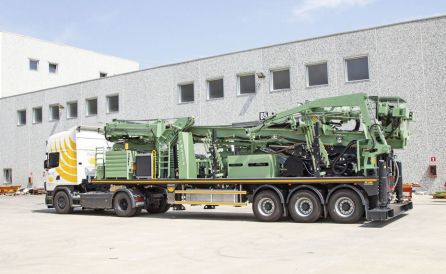

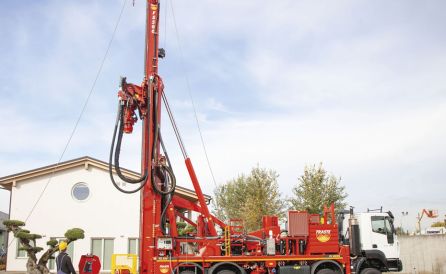

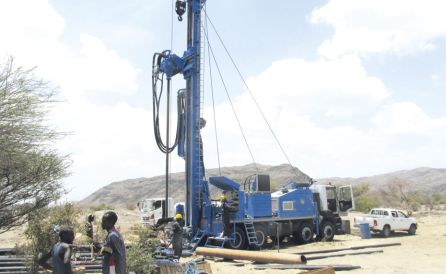

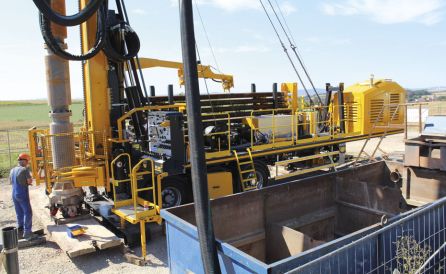

FRASTE FS 500 T - powerful, high-performances and reliable drilling rig. Designed for a multipurpose use with different drilling methods - direct or reverse fluid circulation - air drilling with DTH hammer - auger dry drilling - for Water Wells, Surface soil and mineral Exploration, Geothermal drilling, Seismic, Coring. 40 ton pulling capacity max. - max torque 3500 daNm. Mounting on 3 or 4 axles truck or semitrailer. The FS 500 T has a wide range of equipment and attachments for a lot of jobs. The “ original “ and exclusive Fraste all-hydraulic drill pipes loading system is well available, too.
Optional
- Piston Pump
- Air Compressor
- Main Winch
- Centrifugal Pump
Other optional items are available on demand for a highly customized version of the rig.
MORE INFO ABOUT
FS 500 T ?
FILL IN THE FORM!
Power | CAT - Stage V - Tier 4F - 280-563 kw (375-755 Hp) | |
Rotary head stroke | 7000-8500 mm (23-27,9 ft) | |
Pull-up | 45000 daN (101164 lbf) | |
Pull-down | 25000 daN (56202 lbf) | |

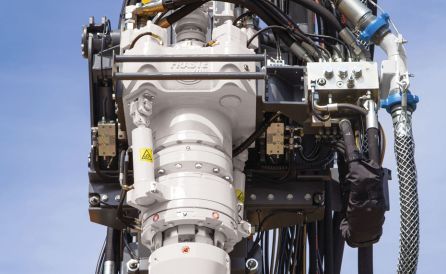

Max rotary head torque | 4320 daNm (31862 ft lbf) | |

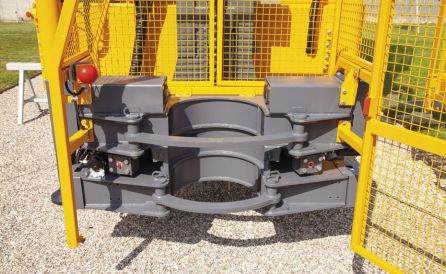

Clamp | Ø 80-520 mm (3,15"-20,5") | |
Rated drilling capacity | 900 mt (2952 ft) | |
